Wheel Aligner
In Stock
Quantity:

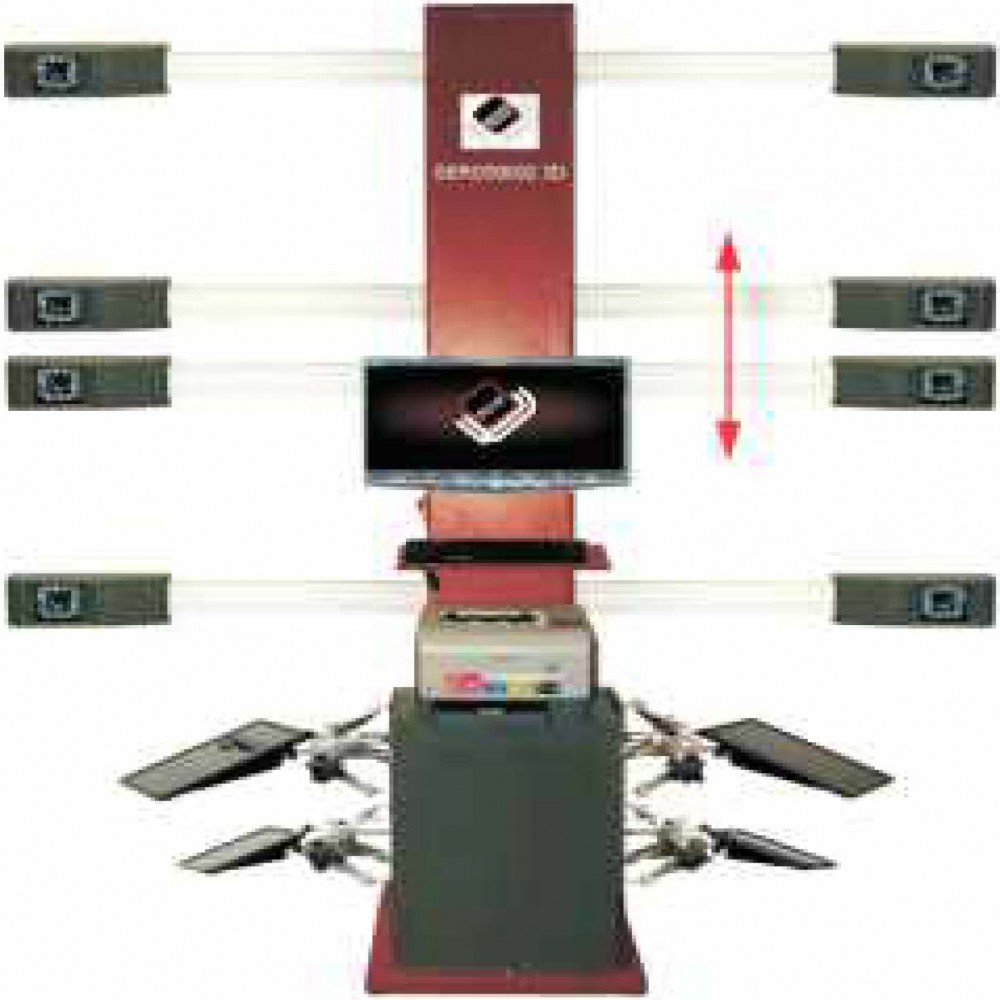

3D Wheel Aligner for cars and light commercial vehicles designed for accurate wheel alignment with a quick measurement routine for front and rear axle angles.
Along with consistent and reliable results on all four wheels simultaneously, the equipment provides animated pictorial representation during alignment.
FEATURES:
- Smart Wide Angle Camera & LEDs for Electronic LED Leveling for the Alignment of Targets and Runout Compensation
- Larger Display of Live Parameter Values
- Ergonomic One-Touch Interface
- Quick Measurement for Front and Rear Axle Toe, Camber, and Thrust Angle
- Raised Position for Adjustment of Toe and Camber
- Quick Navigation Bar
- Remote Control
- Adjustment Option for Single Tie-Rod Vehicles
TECHNICAL DATA / PARAMETERS:
| Parameter | Specification |
|---|---|
| Camber (Front / Rear) | ±15°00’ |
| Caster | ±28°00’ |
| Kingpin Inclination | ±25°00’ |
| Toe (Front / Rear) | ±20°00’ |
| Total Toe | ±40°00’ |
| Toe Out on Turns | ±20°00’ |
| Setback (Front / Rear) | ±25 mm |
| Thrust Angle | ±05°00’ |
| Track Width Difference | ±300 mm |
| Included Angle | ±40°00’ |
| Power Supply | 230 V AC, 50 Hz |
SCOPE OF DELIVERY:
- Two Camera Cross Beam with Trolley Cabinet
- PC with 21" Monitor
- Wheel Clamps
- Turn Plates with Spacer
- Steering Lock and Brake Lock
- Wheel Stopper
- Seros 3D
