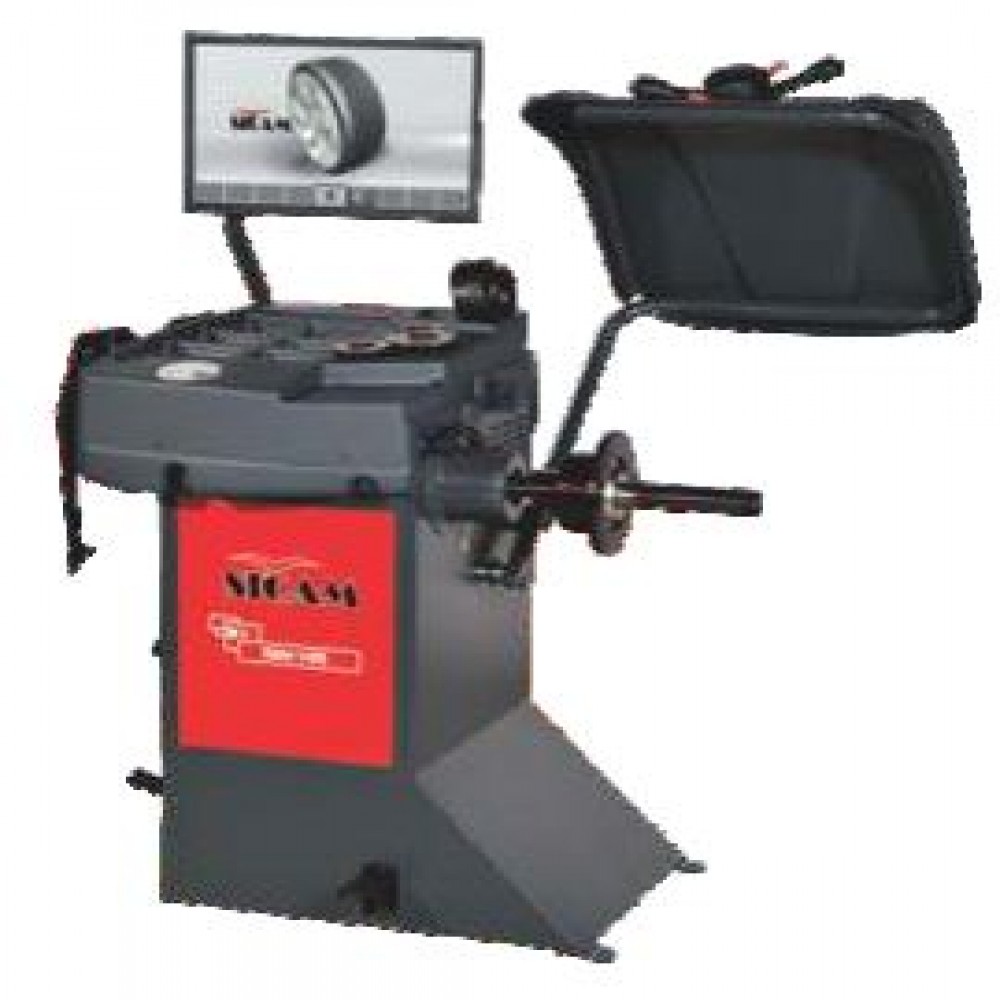

Wheel Balancer
In Stock
Quantity:
FEATURES:
- New ergonomic wheel cover shape
- New weight holder design for easier access
- Supports wheels up to 820 mm in diameter
- Maximum wheel weight capacity: 65 kg
- Compact design with small footprint
- Balancing speed adaptable for 50–60 Hz
- Internal electronic measuring arm for rim distance and diameter
- Optional external electronic measuring arm for rim width
- Multiple holders for weights and tools
- Equipped with a 19" TFT monitor display
- Adjustment option for single tie-rod vehicles
TECHNICAL DATA:
| Parameter | Specification |
|---|---|
| Balancing Speed | 208 rpm (50 Hz) / 250 rpm (60 Hz) |
| Max. Wheel Weight | 65 kg |
| Max. Wheel Diameter | 820 mm |
| Max. Wheel Width | 420 mm |
| Rim Diameter | 6" – 40" (manual) / 10" – 24" (automatic) |
| Rim Width | 1" – 24" (manual) / 1" – 20" (automatic) |
| Accuracy | 1 g / 0.05 oz |
| Max. Dimensions (W × D × H) | 1100 × 1270 × 1370 mm |
| Display | 19" TFT Monitor |
| Power Supply | 230 V / 1 Ph / 50–60 Hz |
SCOPE OF DELIVERY:
Wheel protection
Mechanic centering flange
Three cones for mechanical locking system
Weight plier
Compass
Calibration weight
